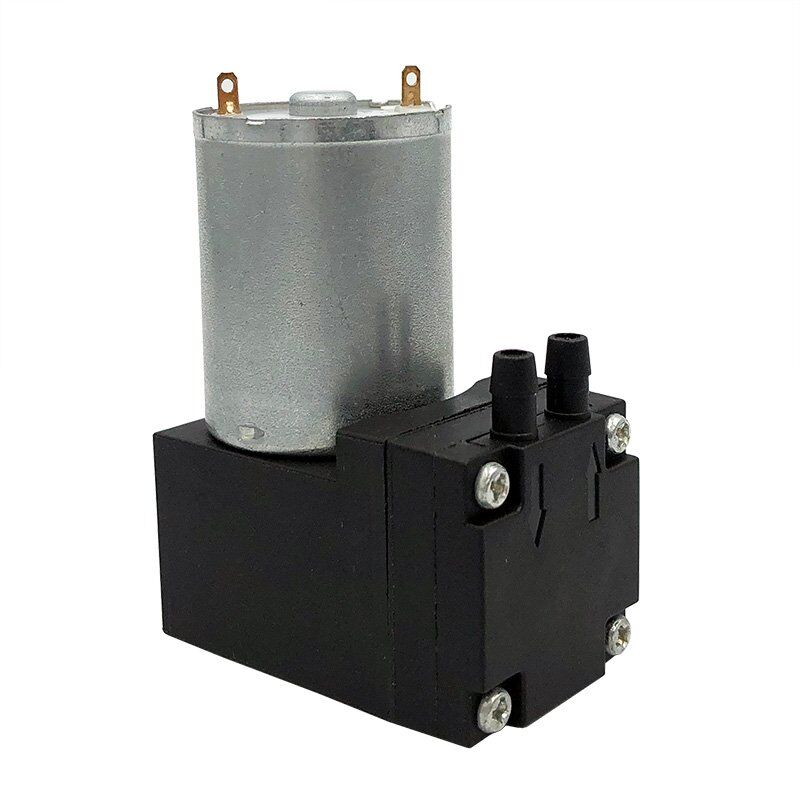

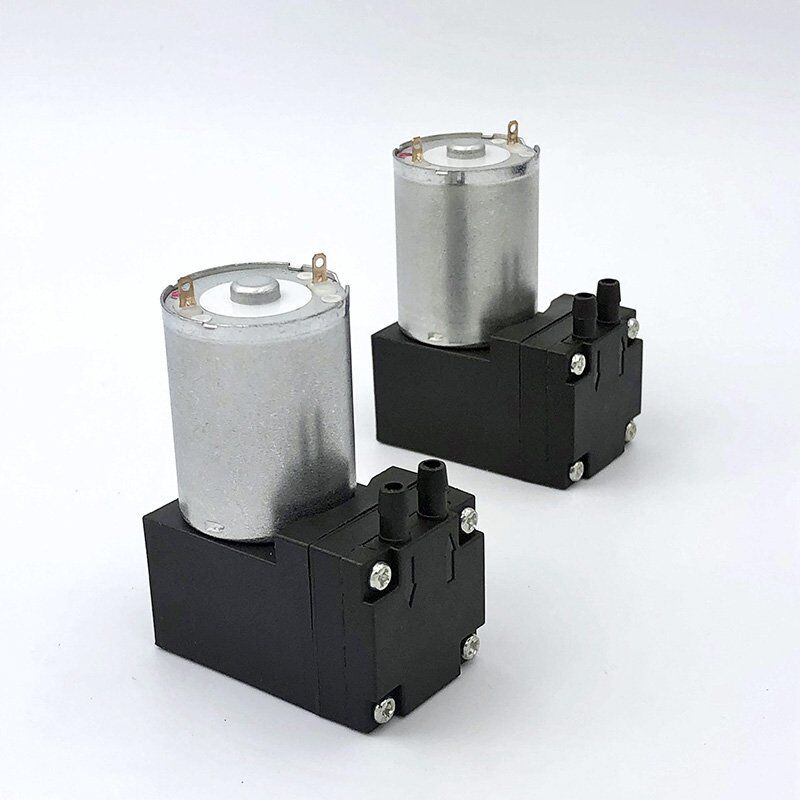

BD-02A Miniature Diaphragm Gas/vacuum Pump

Product advantages：

# Small size, compact structure
# Oil-free, no contamination of transmission medium
# Maintenance-free, long life
# Positive pressure up to 2 bar
# Negative pressure（vacuum） up to -65kpa
# Maximum flow rate up to 3L/min
# Light weight, low noise
# Brush life up to 1000 hours, brushless life up to 3000 hours

Product applications：

# Beauty, Health care, Medical, Environmental protection, Automation, Machining, Food industry, Automotive, Industrial equipment, etc.

Air/vacuum pumps with brush motor

# With small size, BD-02A size 55*40*24mm

# Ultra-light weight, only about 70g

# Brush motor, life time up to 1000 hours, 1-3 times the life time of general air pump, as the core component, suitable for a wide range of portable, small household and industrial equipment.

Gas/vacuum pumps with brushless motor(BLDC)

# With small size, BD-02A size 53*40*25mm

# Ultra-light weight, only about 70g

# Brushless motor, life time up to 3000 hours, 2-3 times the life time of brush motor, more stable and reliable performance, suitable for demanding precision instruments and equipment. And we support custom brushless motors with PWM speed control function to meet your requirements for any flow.
